The Unionaire G+ ITWG 022 R5 represents a robust cooling solution engineered for demanding Mediterranean and Middle Eastern climates. Delivering a potent 21,500 BTU/Hr cooling capacity, this Egyptian-manufactured indoor unit balances high-volume airflow with structural durability. Designed for 220-240V/50Hz systems, it features an IPX4 rating and a compact 12.5 kg chassis for versatile wall-mounted installation.
Mbsmpro.com, Unionaire, G+ ITWG 022 R5, 21,500 BTU/Hr, 6.30 KW, High-Efficiency Indoor Unit, Made in Egypt
In the realm of residential and semi-commercial HVAC systems, the Unionaire G+ series has established itself as a cornerstone of reliability, specifically tailored for high-ambient temperature regions. The G+ ITWG 022 R5 indoor unit is a high-capacity component designed to provide rapid thermal exchange while maintaining a compact footprint. This article provides an engineering-grade breakdown of its performance metrics, electrical requirements, and installation nuances.
Technical Analysis of the G+ ITWG 022 R5
The unit operates on a standard single-phase 220-240V supply at 50Hz, making it compatible with the electrical infrastructure of most of Africa and the Middle East. With a cooling output of 21,500 BTU/Hr (equivalent to 6.30 KW), this model sits comfortably in the 2.5 HP to 3.0 HP category, capable of cooling large living spaces or office environments efficiently.
Core Specifications Table
| Feature | Specification Details |
| Brand | Unionaire |
| Model Number | G+ ITWG 022 R5 |
| Cooling Capacity (BTU/Hr) | 21,500 BTU/Hr |
| Cooling Capacity (KW) | 6.30 KW |
| Electrical Power Supply | 220-240V / 1 Ph / 50 Hz |
| Net Weight | 12.5 Kg (Indoor Unit Only) |
| Ingress Protection Rating | IPX4 (Splash proof) |
| Country of Origin | Made in Egypt |
| Series | G+ (Ionizer/Plasma optimized series) |
Comparative Value Analysis
When evaluating the G+ ITWG 022 R5 against other models in the Unionaire lineup or competitors, the BTU-to-weight ratio is particularly noteworthy. At only 12.5 kg, the indoor unit is relatively lightweight for its cooling class, reducing stress on wall mounts while housing a large-diameter cross-flow fan for quiet operation.
Performance Comparison: 1.5 HP vs. 2.5 HP vs. 3.0 HP
| Model Class | BTU Range | Suitable Area (Avg) | Cooling Speed |
| Unionaire 1.5 HP | 12,000 BTU | 12 – 15 m² | Standard |
| G+ ITWG 022 R5 (2.5 HP) | 21,500 BTU | 22 – 30 m² | High Velocity |
| Unionaire 3.0 HP | 24,000 – 28,000 BTU | 30 – 40 m² | Ultra High |
Electrical Schematic and Wiring Overview
The G+ ITWG 022 R5 follows a standard control logic for split systems. For field technicians, understanding the terminal block configuration is essential for safe integration with the outdoor condenser.
- Terminal L (Brown): Main Power Phase.
- Terminal N (Blue): Neutral Return.
- Terminal S (Signal/Communication): Data line between indoor and outdoor units (vital for compressor cycling).
- Terminal E (Yellow/Green): Earth Grounding.
Engineering Note: Ensure that the communication cable is shielded or properly separated from high-voltage lines to prevent electromagnetic interference (EMI), which can lead to sensor errors or erratic fan speeds.
Engineering Advice and Installation Notices
- Mounting Height: For optimal airflow and thermal stratification, the indoor unit must be installed at a minimum height of 2.3 meters from the floor. This ensures that the cold air plume has sufficient distance to mix with room air before reaching occupants.
- IPX4 Compliance: The IPX4 rating indicates protection against water splashes from any direction. However, this unit is strictly for indoor use. Avoid installation in high-humidity zones like laundry rooms without adequate ventilation.
- Condensate Management: Given the 6.30 KW cooling capacity, significant condensation will occur. Ensure the drain pipe has a minimum downward slope of 1:50 to prevent water backup and microbial growth in the pan.
- Air Filter Maintenance: The G+ series often includes high-density filters. These should be inspected every 15 days in dusty environments to maintain the rated 21,500 BTU/Hr efficiency.
Benefits of the G+ ITWG 022 R5 Model
- Optimized Airflow: The “G+” design features wider air vanes, allowing for a longer “throw” of air, which is essential for rectangular rooms.
- Tropicalized Design: Specifically engineered to handle the high head pressures associated with Egyptian and Gulf climates.
- Serviceability: As a widely distributed model, spare parts such as fan motors and PCB controllers are readily available throughout the region.
Focus Keyphrase: Unionaire G+ ITWG 022 R5 Horsepower BTU Conversion and Technical Cooling Capacity Analysis
SEO Title: Mbsmpro.com, Unionaire, G+ ITWG 022 R5, 2.5 HP, 21500 BTU/Hr, 6.30 KW, Technical Specifications
Meta Description: Determine the exact horsepower for the Unionaire G+ ITWG 022 R5. With 21,500 BTU/Hr and 6.30 KW cooling capacity, this unit is classified in the 2.5 HP to 3 HP range for professional HVAC applications.
Slug: unionaire-g-plus-itwg-022-r5-hp-rating
Tags: Unionaire, 2.5 HP, 3 HP, 21500 BTU, G+ ITWG 022 R5, HVAC Engineering, Air Conditioner HP, Mbsmgroup, Mbsm.pro, mbsmpro.com, mbsm
Excerpt:
The Unionaire G+ ITWG 022 R5 is a high-performance indoor unit with a cooling capacity of 21,500 BTU/Hr (6.30 KW). Technically classified within the 2.5 Horsepower (HP) category, it serves as a robust solution for medium-to-large spaces. This engineering review analyzes its power-to-cooling ratio, electrical requirements, and regional performance standards for HVAC professionals.
Mbsmpro.com, Unionaire, G+ ITWG 022 R5, 2.5 HP, 21,500 BTU/Hr, Professional Cooling Capacity Analysis

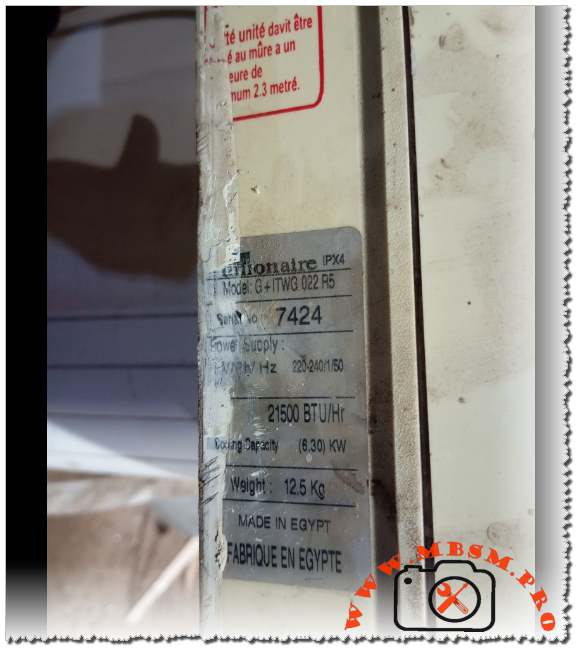

When evaluating the power of an air conditioning unit like the Unionaire G+ ITWG 022 R5, technicians and engineers often look for the “Horsepower” (HP) rating to determine suitability for specific room volumes. Based on the technical data plate indicating a cooling capacity of 21,500 BTU/Hr (6.30 KW), this unit is officially categorized as a 2.5 HP model.
