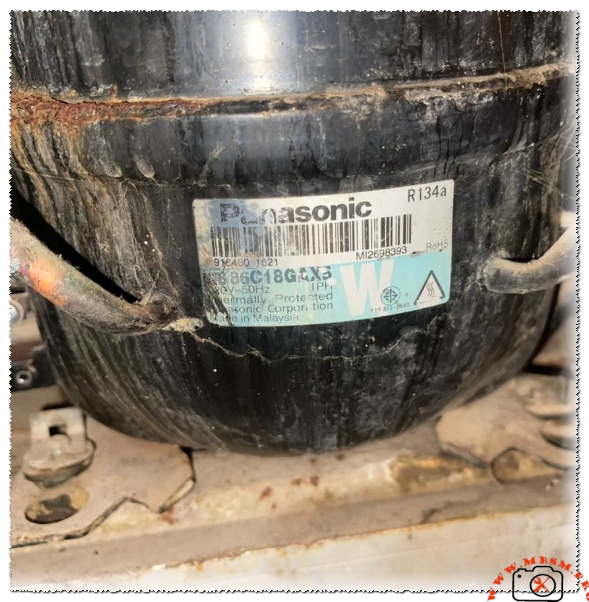

Panasonic QB86C18GAX5: The Reliable Powerhouse of Tropical Refrigeration
Mbsmpro.com, Compressor, QB86C18GAX5, 1/4 hp, Panasonic, Cooling, R134a, 201 W, 1Ph, 220-240V 50Hz, LBP, RSIR, -35°C to -15°C, Freezing
Technical Specifications Table
| Feature | Details |
| Model | QB86C18GAX5 |
| Utilisation | LBP (Low Back Pressure) |
| Domaine | Freezing / Deep Cooling |
| Oil Type and Quantity | Ester Oil (POE) / 230 ml |
| Horsepower (HP) | 1/4 HP |
| Refrigerant Type | R134a |
| Power Supply | 220-240V / 50Hz / 1PH |
| Cooling Capacity BTU | 686 BTU/h (approx. 201W) |
| Motor Type | RSIR (Resistance Start – Induction Run) |
| Displacement | 8.6 cm³ |
| Winding Material | Copper |
| Pressure Charge | 0.4 to 1.1 Bar (Suction Side) |
| Capillary Recommendation | 0.036″ / 0.042″ (Dependent on cabinet size) |
| Refrigerator Models | Large domestic side-by-side, Chest Freezers, Display Chillers |
| Temperature Function | -35°C to -15°C |
| Fan Requirement | Optional (Static cooling usually sufficient) |
| Commercial Use | Light Commercial / Domestic High-Capacity |
| Amperage (RLA) | 1.1A – 1.3A |
| LRA (Locked Rotor Amps) | 8.0A |
| Type of Relay | PTC Relay |
| Capacitor | N/A (Standard RSIR) |
Compressor Cross-Reference (Same Gas – R134a)
- Embraco: EGAS80HLR / FFI8.5HAK
- Danfoss/Secop: TLES8.7F / NLE8.8FT
- LG: MA88LAEP
- Tecumseh: THG1374YS
- Samsung: SK182H-L2U
Compressor Cross-Reference (Alternative Gas – R600a)
- Panasonic: QB86C18GAX5 (R134a specific, use QB91 series for R600a equivalent)
- Embraco: EM2X1121U
- Secop: NLE11KK
- Jiaxipera: NT1114Y
- Donper: LU111CY
Panasonic QB86C18GAX5: The Reliable Powerhouse of Tropical Refrigeration
In the demanding world of refrigeration, the Panasonic QB series has established itself as a benchmark for durability and thermal resilience. The QB86C18GAX5, a 1/4 HP unit, is a staple in high-capacity domestic refrigerators and light commercial freezers. Designed to operate under Low Back Pressure (LBP) conditions, this compressor is particularly favored in regions with high ambient temperatures due to its superior heat dissipation and robust motor design.
Performance and Efficiency
With a displacement of 8.6cc, the QB86C18GAX5 strikes a perfect balance between power consumption and cooling velocity. It provides a cooling capacity of approximately 201 Watts (686 BTU/h), which is the sweet spot for large family refrigerators or chest freezers. The RSIR (Resistance Start – Induction Run) motor ensures a simple electrical setup, reducing the points of failure compared to systems requiring complex start/run capacitors.
Comparison: Panasonic vs. Embraco & Secop
While the Embraco EGAS80HLR is often cited as a direct competitor, the Panasonic QB86C18GAX5 often wins on mechanical silence. Panasonic’s internal damping system is specifically engineered to reduce “knocking” sounds during the start-stop cycle. Compared to the Secop TLES8.7F, the Panasonic unit tends to handle voltage fluctuations slightly better, a critical factor for field technicians working in areas with unstable power grids.
Professional Installation & Maintenance Tips
- Oil Sensitivity: This compressor uses POE (Ester) oil. This oil is extremely hygroscopic (absorbs moisture quickly). Never leave the compressor open to the atmosphere for more than 10 minutes during installation.
- Vacuuming Protocol: A deep vacuum is non-negotiable. Moisture mixed with POE oil creates acid that will etch the copper windings and lead to a “grounded” compressor.
- Filter Drier Replacement: Always use a high-quality 20g or 30g drier. Given the 1/4 HP power, a larger drier ensures a cleaner system for a longer lifespan.
