Copper Pipe Flaring: Common Mistakes and How to Avoid Them in HVAC and Plumbing Installations
90Copper Pipe Flaring: Common Mistakes and How to Avoid Them in HVAC and Plumbing Installations
Improper flaring can lead to refrigerant leaks, system inefficiency, and costly repairs. This guide outlines the most frequent errors and how to engineer flawless connections.
Mbsmpro.com, Copper Pipe, Flaring, HVAC, Plumbing, R600a, Mini-Split, Leak Prevention, Soft Copper, Flaring Block, 1/4″, 3/8″, 1/2″, 5/8″, Refrigerant Line
Understanding Copper Pipe Flaring

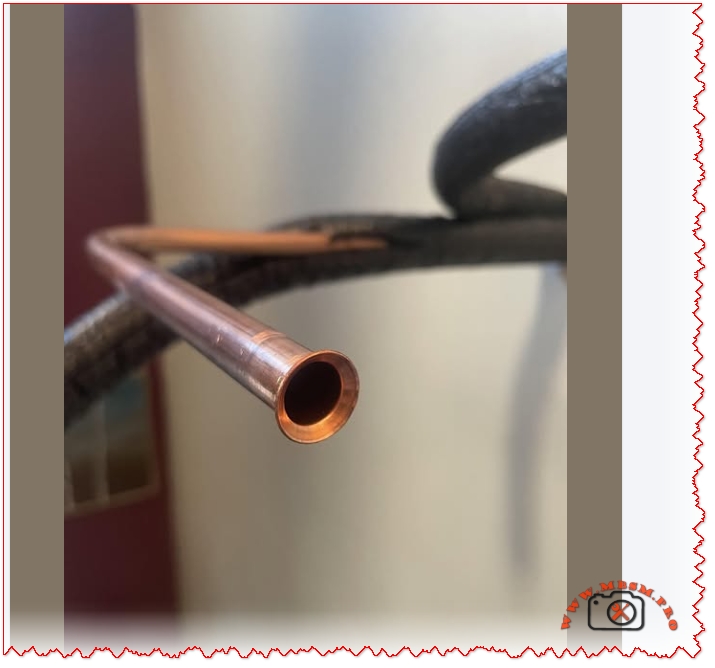

Flaring is the process of shaping the end of a copper pipe into a conical form to create a tight seal with flare fittings. It’s widely used in HVAC systems, refrigeration lines, and plumbing to ensure leak-proof connections—especially when working with R600a, R134a, or R410A refrigerants.
Common Mistakes in Copper Pipe Flaring
| Mistake | Impact | Correction |
|---|---|---|
| Uneven flare | Causes leaks | Use calibrated flaring tools |
| Over-tightening | Damages flare face | Torque to spec using flare nut wrench |
| Under-tightening | Loose connection | Confirm seal with leak detector |
| Dirty pipe ends | Poor seal | Clean and deburr before flaring |
| Wrong pipe size | Misfit with flare nut | Match pipe with fitting size (e.g., 1/4″, 3/8″) |
| No lubrication | Cracked flare | Use flare oil or refrigerant-safe lubricant |
| Using hard copper | Cracks during flaring | Use soft copper tubing only |
Comparison: Flaring vs. Brazing
| Method | Seal Quality | Ease of Repair | Tool Cost | Leak Risk |
|---|---|---|---|---|
| Flaring | High (if done right) | Easy | Low | Medium |
| Brazing | Very High | Difficult | High | Low |
Flaring is preferred for mini-split systems and field repairs, while brazing is ideal for permanent joints.
Engineering Tips for Perfect Flares
- Use a flaring block or hydraulic flaring tool for consistent results.
- Heat the pipe slightly if working in cold environments to prevent cracking.
- Inspect flare face for concentric rings and smooth finish.
- Always pressure test after installation to verify seal integrity.
Benefits of Proper Flaring
- Leak-free connections reduce refrigerant loss and environmental impact.
- Improved system efficiency due to stable pressure.
- Longer equipment life with reduced wear on compressors and valves.
