Technical Specification Comparison
| Feature | ZMC EGM77AA1 | Daewoo HSL25YE-5 |
| Model | EGM77AA1 | HSL25YE-5 |
| Utilisation | LBP (Low Back Pressure) | LBP (Low Back Pressure) |
| Domaine | Freezing / Cooling | Freezing / Cooling |
| Cooling Wattage (-23.3°C) | ~182 W | ~195 W |
| Cubic Feet Capacity | 14 – 18 cu.ft. | 16 – 20 cu.ft. |
| Litres Capacity | 400 – 500 L | 450 – 550 L |
| Kcal/h | 156 kcal/h | 168 kcal/h |
| TON | 0.052 TR | 0.055 TR |
| Oil Type and Quantity | Ester (POE) / 180ml | Ester (POE) / 200ml |
| Horsepower (HP) | 1/4 HP | 1/4 HP+ (Powerful 1/4) |
| Refrigerant Type | R134a | R134a |
| Power Supply | 220-240V / 50Hz | 220-240V / 50Hz |
| Cooling Capacity BTU | 621 BTU/h | 665 BTU/h |
| Motor Type | RSIR / RSCR | RSIR |
| Displacement | 7.69 cc | 8.1 cc |
| Winding Material | Copper | Copper |
| Pression Charge | 0.5 – 1.2 Bar (Suction) | 0.6 – 1.2 Bar (Suction) |
| Capillary Recommendation | 0.031″ / 3.0m | 0.036″ / 3.0m |
| Refrigerator Type | No-Frost Double Door | Large Side-by-Side / Chest Freezer |
| Temperature Function | -35°C to -10°C | -35°C to -10°C |
| Fan Requirement | Static (No Fan needed) | Static or Fan cooled |
| Commercial Application | Light Commercial / Domestic | Light Commercial / Domestic |
| Amperage (Running) | 1.1 A | 1.3 A |
| LRA (Locked Rotor Amp) | 9.0 A | 8.4 A |
| Relay Type | PTC | PTC |
| Capacitor | Optional (4-5 µF) | Usually No |
| Origin | Egypt (ZMC) | Korea (Daewoo) |
Efficiency Metrics (COP) – Performance Data
Measured for R134a LBP Applications
| Evaporating Temp (°C) | Cooling Capacity (Watts) | Power Consumption (Watts) | COP (W/W) |
| -30 | 115 | 118 | 0.97 |
| -25 | 165 | 135 | 1.22 |
| -23.3 (Standard) | 182 | 142 | 1.28 |
| -20 | 215 | 155 | 1.38 |
| -15 | 285 | 175 | 1.63 |
| -10 | 370 | 198 | 1.87 |
| 0 | 510 | 240 | 2.12 |
| 4 | 590 | 265 | 2.23 |
| 10 | 720 | 305 | 2.36 |
Compressor Replacements (Cross-Reference)
5 Replacements in same Refrigerant (R134a):
- Embraco: EMT6170Z (1/4 HP)
- Secop/Danfoss: TL5G (1/4 HP)
- Cubigel: GPY12AA (High Efficiency 1/4)
- Huayi: HYE69YG
- Jiaxipera: ND1114GZ
5 Replacements in Alternative Refrigerant (R600a):
(Note: Requires system flush and capillary adjustment)
- Embraco: EMX70CLC
- Secop: BD35K
- ZMC: HTK80AA
- Jiaxipera: N1113Y
- Donper: L76CZ1
Mastering Low Back Pressure Systems: A Deep Dive into the EGM77AA1 and HSL25YE-5

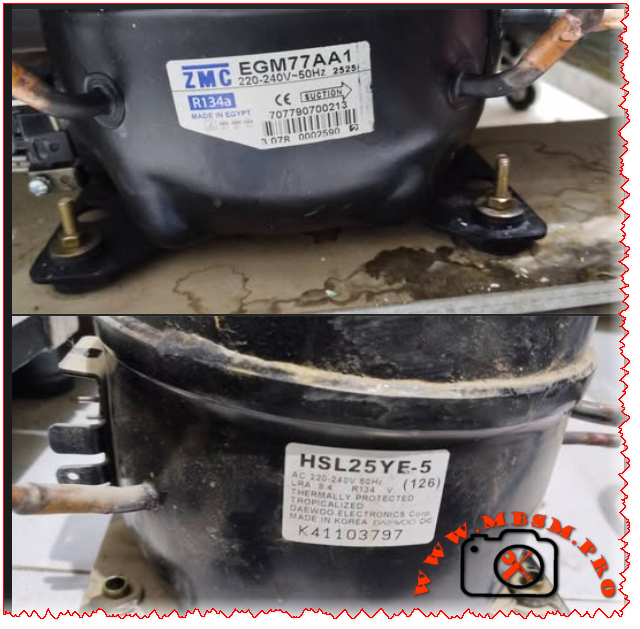

In the world of professional refrigeration, selecting the right motor for the job isn’t just about fitting a black box into a chassis; it’s about understanding the thermodynamics that keep food fresh and customers happy. Today, we are looking at two heavyweight contenders in the 1/4 HP segment: the ZMC EGM77AA1 and the Daewoo HSL25YE-5.
Engineering the Perfect Cool

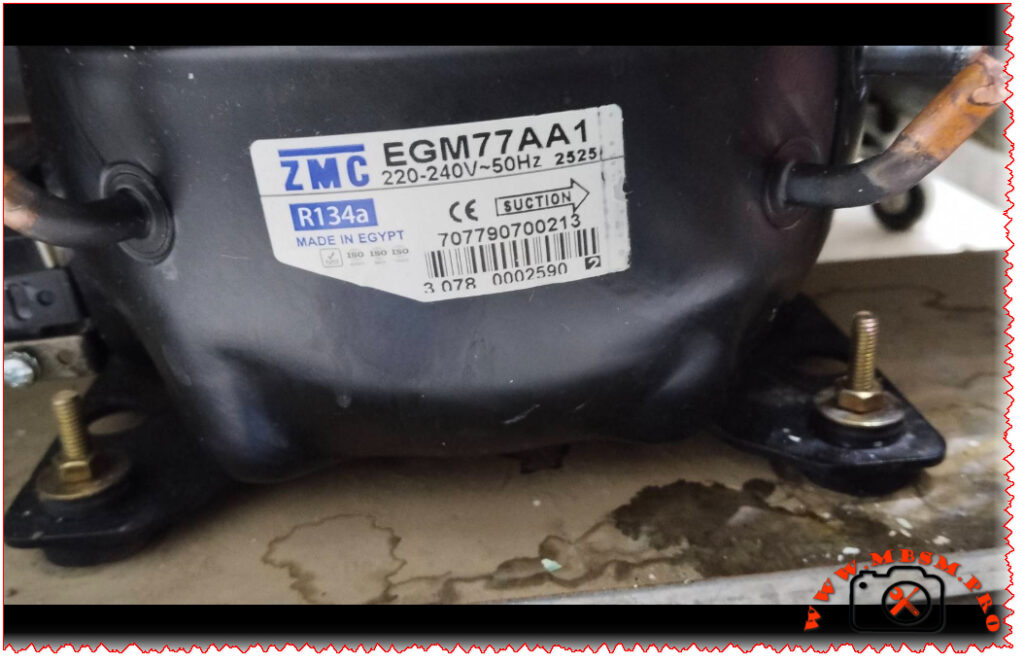

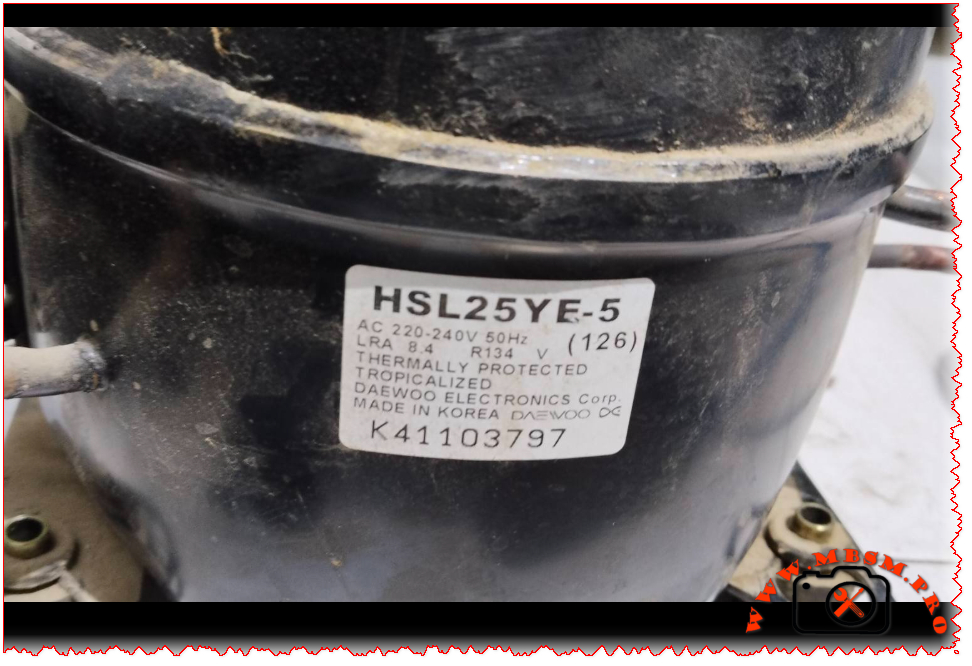

The ZMC EGM77AA1 is a staple of Egyptian manufacturing under European licensing, known for its incredible resilience in high-ambient temperatures. It utilizes a 7.69cc displacement, making it ideal for standard 400-liter household refrigerators. Its counterpart, the Daewoo HSL25YE-5, comes from a lineage of Korean engineering that prioritizes torque. With an 8.1cc displacement, the Daewoo often feels “punchier,” recovering temperatures faster after the fridge door has been opened frequently.
Why Displacement Matters
While both are classified as 1/4 HP, the slight edge in displacement for the Daewoo unit (8.1cc vs 7.69cc) allows it to move a higher volume of R134a gas per stroke. This translates to a slightly higher BTU output. If you are replacing a compressor in a large “No-Frost” unit that includes a heavy ice-maker load, the Daewoo HSL25YE-5 is often the sturdier choice. However, the ZMC unit is legendary for its “quiet” run cycle, making it a favorite for indoor kitchen environments where decibel levels matter.
Professional Advice for Field Technicians
- The Vacuum is Key: When working with R134a and POE (Polyolester) oils, moisture is your greatest enemy. These oils are highly hygroscopic (they soak up water). Always ensure a vacuum of at least 500 microns before charging.
- Capillary Match: If you are swapping a ZMC for a Daewoo, verify the capillary tube. Since the Daewoo has a slightly higher displacement, a restrictive capillary can lead to high head pressure.
- Starting Components: Always replace the PTC relay and the overload protector when installing a new unit. Reusing old components on a new compressor is a recipe for a callback.
The Verdict
Both of these compressors represent the peak of R134a domestic technology. The ZMC EGM77AA1 is the “reliable workhorse” for standard configurations, while the Daewoo HSL25YE-5 is the “high-performance” variant for larger, more demanding cooling loads. By matching the displacement and the BTU requirements accurately, you ensure the longevity of the appliance and the satisfaction of the end-user.
