Carrier Inverter AC Error Codes, Indoor and Outdoor Protection
image_pdfimage_print

Carrier Inverter AC Error Codes, Indoor and Outdoor Protection, IPM Fault, Bus Voltage, Over‑High/Over‑Low, Professional Diagnostic Guide

Carrier inverter air conditioners use a structured error‑code system to protect the compressor, inverter module, sensors, and power supply in both indoor and outdoor units. Knowing how to interpret these codes is essential for fast and accurate HVAC troubleshooting in residential and light‑commercial installations.​


Carrier Inverter Indoor Unit Error Codes

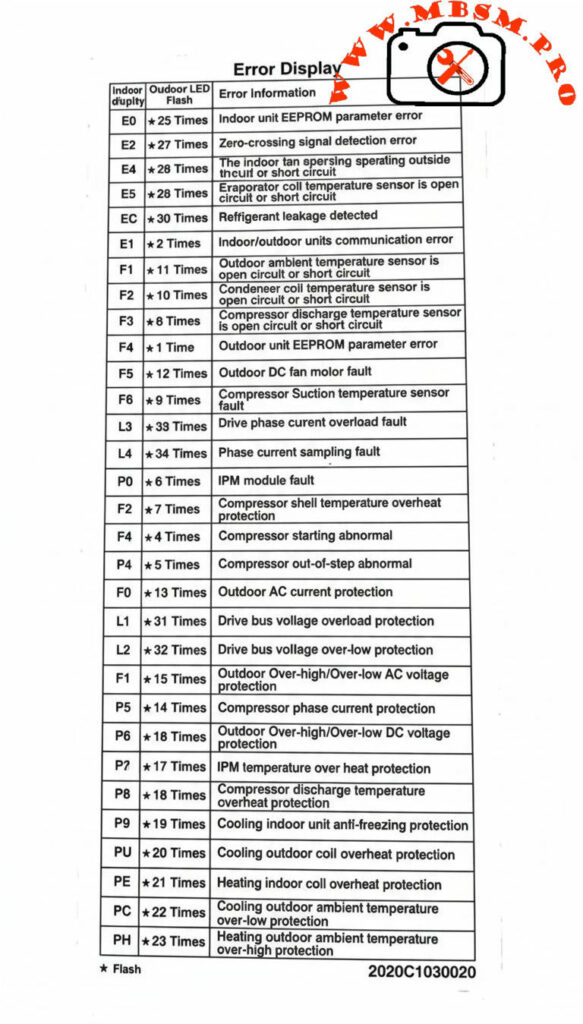

Indoor codes mainly relate to EEPROM parameters, communication, and temperature or refrigerant protection. The table summarizes the key entries from the error‑display list.​

Indoor codeTypical descriptionTechnical meaning
E0Indoor unit EEPROM parameter errorConfiguration data in indoor PCB memory cannot be read or is corrupted.​
E2Indoor/outdoor units communication errorSerial data between indoor and outdoor boards lost or unstable.​
E4Indoor room or coil temp sensor errorTemperature sensor open/short, usually T1 or similar designation.​
E5Evaporator coil temperature sensor errorT2 thermistor fault, affecting frost and overheat protection.
ECRefrigerant leakage detectedControl logic detects abnormal combination of coil temperatures and runtime.​
P9Cooling indoor unit anti‑freezing protectionEvaporator temperature too low; system reduces or stops cooling.

Indoor sensor and communication errors often originate from loose connectors, pinched cables, or water ingress around the PCB rather than failed components, so visual inspection is a critical first step.​


Carrier Inverter Outdoor Unit and Power‑Electronics Codes

Outdoor codes in Carrier inverter systems cover ambient and coil sensors, DC fan faults, compressor temperature, current protection, and IPM module errors.​

CodeShort descriptionEngineering interpretation
F1Outdoor ambient temperature sensor open/shortT4 thermistor fault; affects capacity and defrost logic.
F2Condenser coil temperature sensor open/shortT3 sensor error; risks loss of condensing control.
F3Compressor discharge temp sensor open/shortT5 failure; system cannot monitor discharge superheat.​
F4Outdoor EEPROM parameter errorPCB memory error in outdoor unit.​
F5Outdoor DC fan motor fault / speed out of controlDC fan not reaching commanded speed; bearing, driver, or wiring issue.​​
F6Compressor suction temperature sensor faultSuction line thermistor reading abnormal values.
F0Outdoor AC current protectionAbnormal outdoor current over‑high or over‑low; system enters protection mode.​
L1 / L2Drive bus voltage over‑high / over‑low protectionDC bus outside limits, often due to mains issues or rectifier problems.​
P0IPM module faultIntelligent Power Module over‑current or internal failure; compressor speed control compromised.​
P2Compressor shell temperature overheat protectionExcessive body temperature at compressor top sensor.​
P4Inverter compressor drive errorDrive IC or gate‑signal abnormal; may follow IPM or wiring problems.​
P5Compressor phase current or mode conflictPhase current protection or logic conflict in operating mode selection.​​
P6Outdoor DC voltage over‑high/over‑low or IPM protectionDC bus or IPM voltage feedback outside safe range.​
P7IPM temperature overheat protectionInverter module overheating due to high load or blocked airflow.​
P8Compressor discharge temperature overheat protectionDischarge sensor indicates over‑temperature; often linked to poor condenser airflow or charge issues.​
PU / PE / PC / PHCoil or ambient overheat / over‑low protections depending on modelProtection of indoor or outdoor coil and ambient sensors during extreme conditions.​

For codes like F0, P0, P1, P6, service manuals stress checking supply voltage, compressor current, and all inverter‑side connections before deciding to replace expensive PCBs or the compressor itself.​


Comparison With LG Inverter Error Logic

Both Carrier and LG inverter systems protect similar components, but the naming and grouping of codes differ slightly.​

FeatureCarrier inverter codesLG inverter codes
EEPROM / memoryE0 indoor / outdoor EEPROM malfunction.​9, 60: indoor/outdoor PCB EPROM errors.
CommunicationE2 indoor‑outdoor comms error.​5, 53: indoor‑outdoor communication errors.
IPM / inverterP0 IPM malfunction, P6 voltage protection, P7 IPM overheat.​21, 22, 27: IPM and current faults, 61–62 heatsink overheat.​
Current protectionF0 outdoor AC current, P5 phase current, F0 manuals describe overload diagnosis.​C6, C7, 29: compressor over‑current and phase errors.​

This comparison helps multi‑brand technicians adapt their diagnostic approach while recognizing common inverter‑system failure modes: sensor faults, communication problems, over‑current, and over‑temperature on the IPM and compressor.​


Engineering‑Level Diagnostic Consel for Carrier Inverter AC

Professional troubleshooting of Carrier inverter error codes should follow structured, safety‑oriented steps.​

  • Stabilize power and reset correctly. Disconnect supply, wait for DC bus capacitors to discharge, and then re‑energize to see if transient grid disturbances caused codes like F0, P1, or L1/L2.​
  • Measure, don’t guess. For sensor codes (F1–F3, F6, P8, P9), check thermistor resistance vs temperature and compare to tables in Carrier service manuals before replacing parts.​
  • Check airflow and refrigerant circuit. Overheat protections (P2, P7, P8, PU, PE, PH) frequently point to blocked coils, failed fans, or charge problems rather than electronic failure.​
  • Handle IPM faults carefully. For P0 and P6, confirm all compressor‑to‑IPM connections, inspect for carbonized terminals, and verify correct insulation before deciding whether the IPM module or compressor has failed.​

Following these engineering practices reduces unnecessary part replacement, protects technicians from high DC bus voltages, and helps maintain long‑term reliability of Carrier inverter installations.​
