220V AC to 12V DC Bridge Rectifier Circuit

Complete Guide to 220V AC to 12V DC Bridge Rectifier Circuit Using 1N4007 Diodes

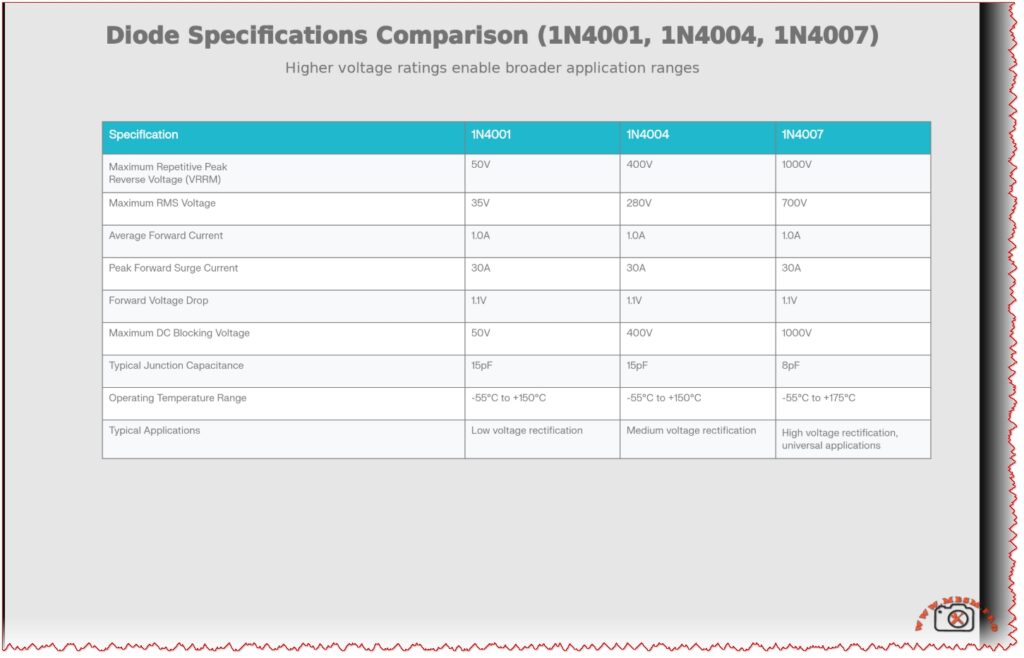

1N400X Series Rectifier Diode Specifications Comparison Table

This comprehensive article explores the technical design and implementation of a 220V AC to 12V DC power conversion circuit utilizing the 1N4007 rectifier diode in a full-wave bridge rectifier topology. The circuit diagram presented demonstrates a practical approach to converting high-voltage AC mains supply to regulated DC voltage suitable for powering low-voltage electronic devices and industrial equipment. Understanding the fundamental principles of bridge rectification, diode selection criteria, and filter capacitor design is essential for engineers and technicians working with power supply circuits in commercial and industrial applications.

Understanding Bridge Rectifier Circuits and the 1N4007 Diode

The bridge rectifier represents the most efficient and widely-used configuration for converting alternating current to direct current in modern power supply design. This topology utilizes four diodes arranged in a diamond or bridge configuration, with the 1N4007 being the industry-standard choice for general-purpose rectification applications. The 1N4007 diode is a silicon rectifier diode specifically engineered to convert AC voltage to DC voltage while maintaining exceptional performance across a wide voltage range.​

The 1N4007 comes from the broader 1N400x series of general-purpose rectifier diodes, all sharing a common forward current rating of 1.0A but differing significantly in their maximum reverse voltage capabilities. What distinguishes the 1N4007 from its predecessors is its maximum repetitive peak reverse voltage (VRRM) rating of 1000V, making it suitable for applications where higher voltage transients may occur. This high reverse voltage rating provides a crucial safety margin when working with mains voltage circuits at 220V or 240V AC, which can produce peak voltages exceeding 300V.​

Key electrical characteristics of the 1N4007 include a forward voltage drop of approximately 1.1V at rated current, a peak forward surge current capacity of 30A (though only for brief periods), and an exceptionally low reverse leakage current of just 5µA at the rated voltage. The diode operates reliably across a temperature range from -55°C to +175°C, allowing deployment in both industrial and consumer environments with varying thermal conditions. These specifications make the 1N4007 an ideal choice for step-down transformer circuits that must reliably handle mains voltage inputs.​

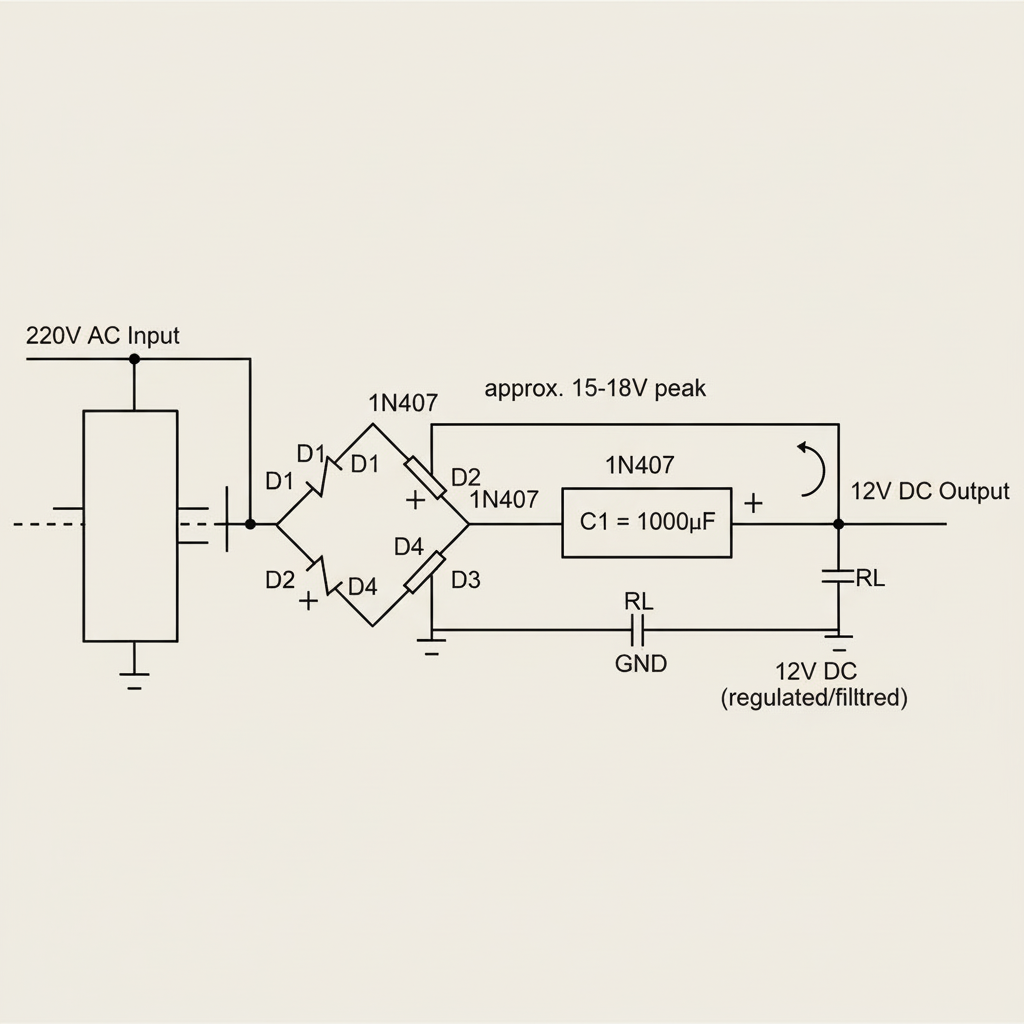

Complete 220V AC to 12V DC bridge rectifier circuit with 1N4007 diodes

Circuit Design: From 220V AC Mains to 12V DC Output

The complete circuit implementation begins with a step-down transformer that reduces the 220V AC mains voltage to 12V AC at the secondary winding. This transformer serves dual purposes: it steps down the voltage to safe levels while providing electrical isolation between the mains supply and the low-voltage output circuit. The transformer’s turns ratio is typically designed as 20:1 (220V primary to 12V secondary) and must be rated for at least 500mA current output to handle reasonable load conditions.​

When the 12V AC emerges from the transformer secondary, it enters the full-wave bridge rectifier circuit composed of four 1N4007 diodes. During the positive half-cycle of the AC input, diodes D1 and D2 become forward-biased and conduct current, while D3 and D4 are reverse-biased and block current flow. During the negative half-cycle, the polarities reverse, causing D3 and D4 to conduct while D1 and D2 block the flow. This alternating conduction pattern ensures that current flows through the load in the same direction for both half-cycles of the AC input, achieving full-wave rectification.​

The peak output voltage from the bridge rectifier can be calculated using the formula: Vpeak = √2 × Vrms – 2 × Vf, where √2 equals approximately 1.414, Vrms represents the transformer secondary voltage (12V), and Vf is the forward voltage drop of each diode (0.7V for silicon types). For a 12V RMS input, the calculation yields: Vpeak = (1.414 × 12) – (2 × 0.7) = 16.97 – 1.4 = approximately 15.6V peak DC. This peak voltage becomes the charging voltage for the filter capacitor.​

Rectification Output Before Filtering

The raw output from the bridge rectifier produces a pulsating DC waveform with significant ripple at a frequency of 100Hz (double the mains frequency of 50Hz). Without filtering, the DC output would fluctuate between approximately 0V and the peak voltage of 15.6V, making it unsuitable for most electronic loads that require stable, smooth DC power. The ripple factor (the ratio of AC component to DC component) for an unfiltered full-wave rectifier is approximately 0.482, meaning the ripple voltage would be nearly half the average DC level.​

Filter Capacitor Design and Ripple Reduction

The addition of a bulk filter capacitor across the rectifier output dramatically improves the quality of the DC voltage by reducing ripple to acceptable levels. The recommended capacitor value for this application is 1000µF at 25V or higher, with many practical circuits using two 1000µF capacitors connected in parallel to achieve 2000µF total capacitance. The capacitor charges rapidly to the peak rectified voltage (approximately 15.6V) through the forward-biased diodes, then slowly discharges through the load resistor during the periods when the rectified voltage drops below the capacitor voltage.​

The charging and discharging cycle creates the characteristic sawtooth waveform visible on an oscilloscope. The effectiveness of this filtering depends on three critical factors: the capacitance value, the load resistance, and the frequency of the input AC signal. Higher capacitance values, higher load resistance (lighter loads), and higher frequency all result in lower ripple voltage. For a 50Hz line frequency full-wave rectifier with a 1000µF capacitor and a 100Ω load resistance, the time constant is calculated as RC = (100Ω) × (1000µF) = 100,000 microseconds or 0.1 seconds.​

The ripple voltage magnitude depends on how much the capacitor discharges between consecutive peaks of the rectified waveform. The formula for peak-to-peak ripple voltage is: Vripple = Iload / (2 × f × C), where Iload is the DC load current, f is the ripple frequency (100Hz for full-wave at 50Hz mains), and C is the capacitance in farads. For a 100mA load with 1000µF capacitance: Vripple = 0.1A / (2 × 100 × 0.001F) = 0.5V peak-to-peak. This 0.5V ripple represents approximately 3-4% of the final 12V DC output, which is acceptable for most applications.​

Detailed Comparison of 1N400X Series Rectifier Diodes

Comparison with Alternative Rectifier Diodes

Understanding the differences between members of the 1N400x diode family is crucial for selecting the appropriate component for specific voltage requirements. The 1N4001 represents the entry-level option in this series with a maximum repetitive peak reverse voltage of only 50V, making it suitable exclusively for very low-voltage applications operating well below 50V. The 1N4001 shares the same forward current rating of 1.0A and forward voltage drop of 1.1V as the 1N4007, but its severely limited reverse voltage rating makes it unsuitable for mains voltage circuits.​

The 1N4004 occupies the middle ground with a VRRM rating of 400V, appropriate for 120V AC mains circuits where the peak voltage after transformation might reach 300-350V. This diode finds common application in consumer electronic device chargers and adapters operating on North American 120V supplies. However, for 220V or 240V AC mains supplies common in Europe, Asia, and Africa, the 400V rating provides insufficient safety margin when considering transient voltage spikes that can exceed the normal peak voltage.​

The 1N4007 with its 1000V VRRM rating provides the maximum flexibility and safety for designing circuits that must operate reliably across varying input voltage conditions. The higher voltage rating of the 1N4007 incurs minimal cost penalty—typically just a few cents per unit—making it the preferred choice for designs where voltage flexibility is valued. In fact, the 1N4007 can directly replace either the 1N4001 or 1N4004 without any performance degradation, as the higher reverse voltage rating creates no adverse effects when used in lower-voltage circuits.​

Bridge Rectifier Power Calculations and Load Analysis

Determining the appropriate power capacity of the circuit requires careful analysis of the load current requirements and the transformer specifications. The average DC output current from a bridge rectifier is related to the peak rectified voltage and the load resistance by Ohm’s law: Idc = Vdc / Rload. For a fully filtered circuit producing 12V DC with a 100Ω load resistance, the average DC current would be approximately 120mA.​

The peak forward current through each diode during the charging phase of the capacitor is significantly higher than the average load current. This occurs because the capacitor charges rapidly when the rectified voltage exceeds the capacitor voltage, with the charge transfer concentrated into a narrow time window during each cycle. The peak diode current can be estimated as 3-5 times the average load current depending on the capacitor size and load resistance.​

For the 1N4007 with its 1.0A average forward current rating and 30A peak surge rating, a circuit with 100-120mA average load current operates comfortably within specifications. The transformer secondary winding should be rated for at least 1.5-2 times the expected average load current to provide headroom for transient peaks.​

Voltage Regulation and Output Stability

While the bridge rectifier with capacitor filter produces stable DC output compared to unfiltered rectification, the output voltage exhibits variations under changing load conditions. Without a voltage regulator IC, the DC output voltage approaches the peak rectified voltage (approximately 15.6V) under light load conditions when the capacitor charges fully and the load current is minimal. As the load current increases, the capacitor discharges more rapidly between rectification peaks, causing the minimum voltage to drop and creating larger ripple voltage.​

This load-dependent voltage variation is characteristic of unregulated power supplies designed with capacitor-input filters. To maintain a constant 12V output regardless of load variations, a voltage regulator circuit using an IC such as the 7812 (12V three-terminal regulator) should be added downstream of the filter capacitor. The regulator accepts the unregulated 14-16V DC input and produces a stable, regulated 12V output with excellent load regulation and significantly reduced ripple.​

Safety Considerations and Circuit Protection

Working with circuits connected to mains voltage requires strict adherence to electrical safety protocols to prevent serious injury or equipment damage. The primary safety concerns include high-voltage shock hazard, transient voltage spikes that can damage components, and thermal hazards from excessive power dissipation. Always ensure the circuit is fully disconnected from the AC mains before handling components or performing maintenance.​

Protective components should be incorporated into any practical implementation of this circuit. A fuse rated at 500mA to 1A should be placed on the primary side of the transformer to protect the entire circuit against overcurrent conditions and short circuits. A varistor (MOV—metal oxide varistor) rated for 275V AC should be connected across the primary winding to suppress transient voltage spikes caused by lightning or inductive load switching.​

The transformer itself provides crucial safety isolation between the mains voltage and the low-voltage output circuit. All external metallic parts of the transformer should be properly grounded, and the transformer enclosure should be rated for the intended operating environment. Cable insulation must be rated for the maximum voltage present in each section of the circuit—high-voltage insulation on the primary side and standard 250V-rated insulation on the secondary DC side.​

Troubleshooting Common Bridge Rectifier Problems

Understanding failure modes and diagnostic techniques enables rapid troubleshooting of bridge rectifier circuits. The most common problem is a single diode failure in the open-circuit condition, where one diode loses the ability to conduct forward current. This failure mode causes the circuit to degrade from full-wave operation to half-wave operation, with output voltage dropping to approximately half the expected value. The ripple frequency also halves from 100Hz to 50Hz, creating much larger voltage fluctuations on the output.​

A shorted diode represents an even more serious failure mode where one diode loses its reverse-blocking capability and conducts continuously. This condition can cause excessive current flow through the transformer secondary winding and the shorted diode, generating heat and potentially destroying the transformer and capacitor. The output voltage drops to near zero in this condition, and the diodes may begin smoking as internal fuses or junction temperature limits are exceeded.​

Capacitor failure frequently occurs due to aging, excessive voltage stress, or high ambient temperatures. A failed capacitor that develops a large leakage current causes excessive ripple voltage to reappear on the output despite the filter being present. If the capacitor develops an internal short circuit, the output voltage collapses to the level of a half-wave rectifier.​

Diagnostic steps include measuring the DC output voltage (should be approximately 14-16V unloaded, or 12V with proper regulation), measuring the ripple voltage with an oscilloscope (should be less than 1V peak-to-peak for 1000µF filter), testing each diode individually with a multimeter in diode test mode (forward drop should be 0.6-0.7V, reverse resistance should be very high), and measuring capacitor voltage (should approach the peak rectified voltage under light load).​

Practical Applications and Industrial Use Cases

The 220V to 12V bridge rectifier circuit using 1N4007 diodes finds extensive application across numerous industries and consumer products. Battery charging systems for vehicle starting or industrial equipment batteries frequently employ this topology to convert mains AC to the DC voltage required by charging circuits. Lighting control circuits for LED systems and stage lighting equipment utilize bridge rectifiers to power logic and control electronics from AC stage power supplies.​

Industrial control systems including programmable logic controllers (PLCs), motor speed controllers, and sensor signal conditioning circuits depend on stable DC power derived from bridge rectifier circuits. Telecommunications equipment such as central office power supplies and network infrastructure typically employ variants of bridge rectifier topology to generate the multiple DC voltages required by modern communication systems.​

Consumer electronics ranging from desktop computer power supplies to audio amplifier circuits incorporate bridge rectifier stages as the first power conversion element. The circuit’s simplicity, reliability, and low cost make it the preferred choice for applications requiring conversion of AC mains to stable DC at modest power levels (typically under 50W continuous).​

Advanced Design Considerations and Optimization

Modern power supply design incorporating bridge rectifiers increasingly incorporates electromagnetic interference (EMI) filtering between the AC mains and the transformer primary to suppress conducted emissions that can affect radio reception and sensitive electronic equipment. Common-mode chokes (inductors placed in series with both mains leads) combined with X and Y-rated capacitors provide effective EMI suppression while maintaining safety.​

Thermal management becomes important in high-current applications where the diode forward voltage drops (totaling 2.2V for two series diodes during conduction) generate significant power dissipation. A circuit delivering 1A continuous current would dissipate 2.2W of heat in the diodes alone. Mounting the diodes on heatsinks rated for at least 50°C/W thermal resistance helps maintain junction temperatures below the 175°C absolute maximum.​

The selection between discrete diodes in bridge configuration versus integrated bridge rectifier modules involves trade-offs between cost, component density, and ease of layout. Integrated bridge rectifier packages such as the MB10S or GBJ15005 provide all four diodes in a single molded plastic package, simplifying PCB layout and improving assembly efficiency. However, discrete diodes offer flexibility for custom layouts and allow individual diode replacement if failures occur.​

Soft-start circuits that gradually apply voltage to the filter capacitor can prevent inrush current spikes during power-up. Without soft-starting, the uncharged capacitor appears as a short circuit to the transformer secondary, allowing peak currents of 20-30A to flow for the first few cycles, stressing components and potentially tripping circuit breakers.​

Conclusion: Reliable Power Conversion Through Proven Topology

The 220V AC to 12V DC bridge rectifier circuit utilizing 1N4007 diodes represents a time-tested, reliable approach to mains voltage conversion that has served the electronics industry for decades. The 1N4007’s combination of robust 1000V reverse voltage rating, adequate 1A forward current capacity, and economical cost makes it the logical choice for new designs and repairs of existing equipment.​

Successful implementation requires careful attention to transformer selection, proper filter capacitor sizing for acceptable ripple voltage, appropriate incorporation of protective components, and strict adherence to electrical safety protocols. The circuit’s simplicity belies the importance of understanding the fundamental principles of AC-DC conversion, diode behavior, and capacitive filtering for achieving reliable, long-lived power supplies.​

Engineers and technicians working with power conversion circuits should maintain thorough knowledge of bridge rectifier operation, diode selection criteria across the 1N400x series, and troubleshooting methodologies for rapid diagnosis and repair of failed circuits. As technology continues to advance toward switching power supplies and increasingly sophisticated power electronics, the fundamental bridge rectifier circuit remains an essential building block in countless applications where simplicity, reliability, and cost-effectiveness are paramount.​
