Understanding the AC Nameplate: Your Unit’s Complete Technical Profile

Introduction

The air conditioner nameplate is far more than a decorative label—it’s a comprehensive technical document containing every critical specification your unit needs to operate safely, efficiently, and effectively. Whether you’re a licensed HVAC technician, building maintenance professional, or curious homeowner, understanding how to read and interpret the information on an AC nameplate is essential for troubleshooting, repairs, maintenance planning, and purchasing decisions.

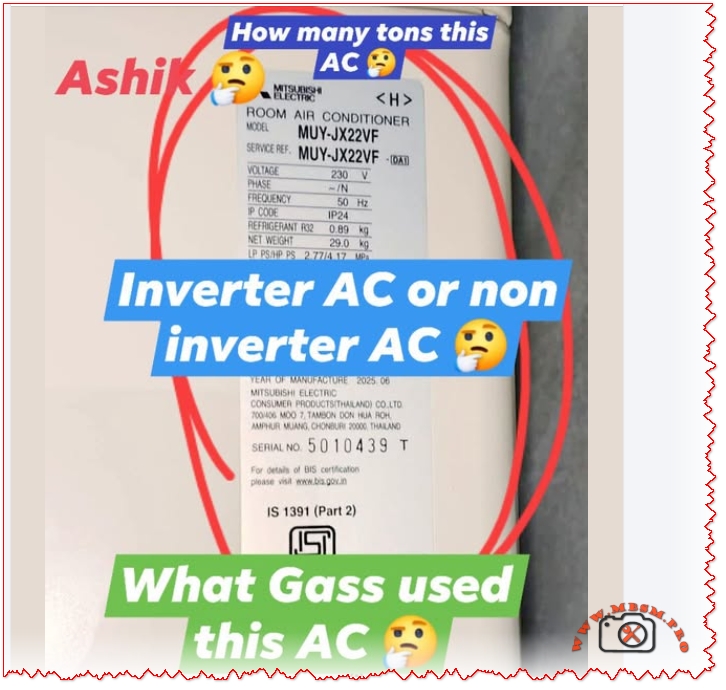

The Mitsubishi Ashiki MUY-JX22VF nameplate demonstrates a complete example of how manufacturers present technical information. This guide breaks down every element of the AC nameplate, from basic identifiers to complex electrical specifications.

PART 1: NAMEPLATE LOCATION & PHYSICAL CHARACTERISTICS

Where to Find the AC Nameplate

Outdoor Unit Nameplate:

Indoor Unit Nameplate (if present):

• Back panel behind unit
• Inside service compartment
• Sometimes absent (specs on outdoor unit only)

Physical Nameplate Materials

PART 2: DECODING THE MODEL NUMBER

Model Number Structure Explained

The model number is the primary identifier. Using Mitsubishi Ashiki MUY-JX22VF as reference:

textMUY - JX - 22 - VF
 |    |    |    |
 1    2    3    4

1 = Manufacturer/Unit Type Code
2 = Series/Technology Code
3 = Capacity Code
4 = Variant/Configuration Code

Component Breakdown: MUY-JX22VF

Capacity Code Conversion Formula

The magic formula all technicians use:

Cooling Capacity (Tons) = Two-digit capacity number ÷ 12

Example Conversions:

Series Code Meanings

PART 3: ELECTRICAL SPECIFICATIONS

The Voltage Section

Typical nameplate notation:

textVOLTAGE:     230 V
PHASE:       1 (Single Phase)
FREQUENCY:   50 Hz

What this means:

Voltage Tolerance Range

The ±10% rule:

For a 230V rated unit:

Real-world implication: A 230V AC unit operates safely between 207-253V. Outside this range triggers protection mechanisms.

Frequency Specification (Hz)

Critical warning: A 50 Hz unit will not work in a 60 Hz supply (and vice versa). Compressor will either fail to start or operate dangerously.

PART 4: AMPERAGE RATINGS EXPLAINED

Types of Amperage on the Nameplate

Three different amperage ratings appear on AC nameplates, each serving different purposes:

Understanding RLA (Rated Load Amps)

The most important amperage specification:

RLA Definition: The steady-state current draw when the compressor operates at rated cooling capacity under standard test conditions (outdoor 35°C/95°F, indoor 26.7°C/80°F).

For the Mitsubishi Ashiki MUY-JX22VF:

• RLA = 9.0-9.2 Amperes
• This is the “normal” running current

Interpretation:

• Circuit breaker sized for RLA safety
• Unit should draw approximately this current during operation
• Higher current indicates problems (low refrigerant, dirty coils)
• Lower current indicates reduced capacity

Understanding LRA (Locked Rotor Amps)

The startup specification:

LRA Definition: The maximum current drawn when the compressor motor starts and rotor is initially locked (not yet spinning).

For similar 1.9-ton units:

• LRA = 28-35 Amperes (3-4x the RLA)

Why this matters:

The starting current is dramatically higher than running current because:

1. Motor starting requires breaking initial static friction
2. No back-EMF initially (back-EMF develops as motor spins)
3. Resistance is minimal at startup
4. Brief but intense current spike (typically <1 second)

Electrical design consequence: Circuit breakers and wire must handle brief LRA spikes without nuisance tripping.

Understanding MCA (Minimum Circuit Ampacity)

The electrical installation specification:

MCA Definition: The minimum current-carrying capacity of the supply wire and circuit breaker needed to safely supply the unit.

Typical MCA = 125% of RLA

For RLA of 9.0A:

• MCA = 9.0 × 1.25 = 11.25A (rounded to 11.0A)

Installation requirement: An electrician must use:

• Wire rated for at least 11 Amperes
• Circuit breaker rated for at least 15 Amperes (standard minimum in residential)
• Dedicated circuit (not shared with other devices)

Actual Current Draw During Operation

Real-world vs. rated current:

Inverter advantage: DC inverter units (like MUY-JX22VF) can ramp up gradually, avoiding the harsh LRA spike that damages older equipment and causes electrical stress.

PART 5: REFRIGERANT SPECIFICATIONS

Refrigerant Type Identification

The nameplate clearly identifies the refrigerant chemical used in the unit:

Reading Refrigerant Charge Information

Typical nameplate notation:

textREFRIGERANT:     R32
CHARGE:          0.89 kg
              or 1.95 lbs

What each specification means:

Critical Refrigerant Rules

✅ Always use the exact refrigerant specified on the nameplate

• Never mix refrigerants (R32 + R410A = chemical reaction)
• Incompatible with old equipment if upgrading refrigerant type
• Different pressures/oil requirements per refrigerant

Refrigerant Pressure Standards

Each refrigerant operates at specific pressures. The nameplate may reference:

PART 6: COOLING CAPACITY SPECIFICATIONS

Understanding BTU and Kilowatt Ratings

The nameplate lists cooling capacity in two formats:

Capacity Ranges

Modern AC units don’t operate at a single fixed capacity. The nameplate specifies:

Inverter technology explanation: Traditional fixed-speed units run at 100% or 0%. Inverter units (DC) modulate between 10-100% capacity based on room temperature demands.

Cooling Capacity vs. Room Size

The 1.9-ton capacity suits specific square footage:

PART 7: PROTECTIVE COMPONENTS & SAFETY RATINGS

Fuse/Breaker Information

The nameplate specifies electrical protection required:

Typical notation:

textFUSE SIZE:       15A
BREAKER SIZE:    20A
MAX BREAKER:     25A

What this means:

Protection hierarchy:

textWire gauge
  ↓
Circuit breaker (breaks circuit on overload)
  ↓
Compressor thermal overload (protects motor)
  ↓
Electrical components (capacitors, contactors)

Design Pressure Rating

The pressure specifications indicate maximum safe pressures:

PART 8: NOISE LEVEL SPECIFICATIONS

Decibel (dB) Ratings

The nameplate may specify noise levels:

Typical 1.9-ton AC noise:

PART 9: PERFORMANCE RATINGS

COP (Coefficient of Performance)

What COP means:

COP = Cooling output (kW) ÷ Electrical input (kW)

Example calculation (MUY-JX22VF):

• Cooling output: 6.6 kW
• Electrical input: 2.05 kW
• COP = 6.6 ÷ 2.05 = 3.22

Interpretation:

• COP of 3.22 means the unit delivers 3.22 kW of cooling for every 1 kW of electricity consumed
• Higher COP = better efficiency
• COP 3.0+ is considered efficient

Comparison:

SEER/ISEER Ratings

SEER = Seasonal Energy Efficiency Ratio
ISEER = Indian Seasonal Energy Efficiency Ratio

These measure seasonal average efficiency, not just rated conditions.

PART 10: COMPLETE NAMEPLATE READING EXAMPLE

Mitsubishi Ashiki MUY-JX22VF Complete Specifications

Let’s assemble all nameplate information into a complete profile:

Identification Section:

textMANUFACTURER:        Mitsubishi Electric
MODEL:              MUY-JX22VF
SERIAL NUMBER:      5010439T
STANDARD:           IS 1391 (Part 2)
MANUFACTURING DATE: 2025-06

Electrical Section:

textVOLTAGE:            230V
PHASE:              1 (Single Phase)
FREQUENCY:          50 Hz
RATED INPUT POWER:  2,050W
RATED CURRENT:      9.0-9.2A
MINIMUM CIRCUIT:    11.0A
CIRCUIT BREAKER:    20A
FUSE SIZE:          15A

Cooling Performance Section:

textREFRIGERANT TYPE:   R32
REFRIGERANT CHARGE: 0.89 kg
COOLING CAPACITY:   6,600W (22,800 BTU/hr)
CAPACITY RANGE:     1,600-6,700W
TONNAGE:            1.9 tons
COP (RATED):        3.22

Safety Section:

textDESIGN PRESSURE:    4.5 MPa
TEST PRESSURE:      5.25 MPa
IP RATING:          IP24 (Dust & Moisture)

PART 11: PROFESSIONAL READING & INTERPRETATION

Technician’s Nameplate Checklist

When servicing an AC unit, use this verification sequence:

Common Nameplate Reading Errors & Solutions

PART 12: STANDARDS & CERTIFICATIONS

IS 1391 (Part 2) Standard

The Mitsubishi Ashiki nameplate includes “IS 1391 (Part 2)” reference:

This means:

• IS = Indian Standard (Bureau of Indian Standards certification)
• 1391 Part 2 = Split air conditioner specification standard
• 2018/2023 = Latest revision year

IS 1391 requirements for nameplate:

PART 13: COMPARISON WITH NON-INVERTER NAMEPLATE

Inverter vs Non-Inverter Nameplate Differences

Inverter Unit (MUY-JX22VF):

textCooling Capacity:    1,600-6,700W (variable)
RLA Current:         9.0A
LRA Current:         15-18A (gradual startup)
Input Power:         340-2,200W (varies)
COP:                 3.22 (at rated)
SEER:                4.22 (seasonal average)

Non-Inverter Unit (for comparison):

textCooling Capacity:    Fixed 6,500W (on/off only)
RLA Current:         11.5A
LRA Current:         28-32A (harsh spike)
Input Power:         2,100W (constant high)
COP:                 2.8 (constant)
SEER:                3.1 (poor seasonal)

Key Nameplate Differences:

PART 14: PRACTICAL TROUBLESHOOTING USING NAMEPLATE DATA

Diagnosing Problems with Nameplate Information

Problem: Unit runs but cools slowly

1. Check rated cooling capacity (should be 6,600W for 1.9-ton)
2. Measure actual electrical input (compare to nameplate 2,050W)
3. If input is low → low refrigerant charge (compare to 0.89 kg specification)
4. If input is high → dirty condenser or high outdoor temp exceeding design

Problem: Tripped circuit breaker

1. Check MCA specification (should be 11.0A minimum wire size)
2. Check circuit breaker size (should be 20A per nameplate)
3. If breaker is 15A → breaker too small for this unit
4. If tripping on startup → LRA spike (normal, but may need breaker adjustment)

Problem: Unit won’t accept refrigerant charge

1. Verify refrigerant type on nameplate (R32 vs R410A)
2. Check design pressure limit (4.5 MPa maximum)
3. If pressure exceeds spec → too much charge or blocked lines
4. Always match refrigerant type exactly to nameplate

PART 15: INSTALLATION & SAFETY REQUIREMENTS

Critical Installation Rules from Nameplate

Electrical installation must follow:

Refrigerant Handling

From the nameplate refrigerant specification:

✅ Must use R32 (exact match)

• Never mix with R410A or R134A
• Never top-up with wrong refrigerant
• Requires EPA certification for handling
• Recovery equipment must be R32-compatible

CONCLUSION: Mastering AC Nameplate Reading

The air conditioner nameplate is a comprehensive technical document designed to provide every specification necessary for:

✅ Proper installation – Electrical, refrigerant, mounting requirements
✅ Safe operation – Voltage tolerances, pressure limits, protection settings
✅ Effective maintenance – Refrigerant type, charge amount, service intervals
✅ Accurate troubleshooting – Comparing actual vs rated performance
✅ Regulatory compliance – IS 1391, environmental standards, safety codes

Whether you’re reading the Mitsubishi Ashiki MUY-JX22VF nameplate or any other modern inverter AC unit, the principles remain consistent:

1. Model number encodes capacity (divide two-digit code by 12)
2. Electrical specs must match exactly (voltage, frequency, phase)
3. Refrigerant type is non-negotiable (exact match required)
4. Current ratings serve different purposes (RLA = running, LRA = startup)
5. Cooling capacity defines room size suitability (tonnage matching)

Professional competency in nameplate reading separates expert technicians from novices. Every repair, installation, and maintenance task begins with nameplate verification. This comprehensive guide provides the knowledge framework to read, interpret, and apply all information displayed on your AC unit’s nameplate with confidence and precision.
