Refrigeration

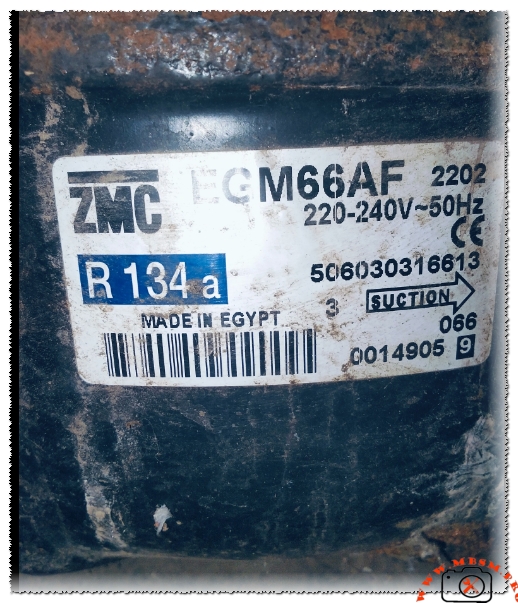

Compressor, ZMC EGM66AF, is an excellent fit for a 10-foot refrigerator
Yes, this compressor (ZMC EGM66AF) is an excellent fit for a 10-foot refrigerator. It is rated at approximately 1/6 HP, which is the industry standard for domestic fridges in the 10 to 12-foot range.
Mbsmpro.com, Compressor, EGM66AF, 1/6 hp, ZMC, Cooling, R134a, 150 W, 1.1 A, 1Ph 220-240V 50Hz, LBP
| Feature | Specification |
| Model | ZMC EGM66AF |
| Utilization | LBP (Low Back Pressure) |
| Domaine | Freezing / Cooling (Domestic) |
| Oil Type and Quantity | POE / Ester Oil – ~180ml |
| Horsepower (HP) | 1/6 HP |
| Refrigerant Type | R134a |
| Power Supply | 220-240V ~ 50Hz |
| Cooling Capacity BTU | ~512 BTU/h (at -23.3°C) |
| Motor Type | RSIR (Resistive Start – Induction Run) |
| Displacement | 6.66 cm³ |
| Winding Material | High-Grade Copper |
| Pression Charge | Low side: 0 – 10 PSI (typical) |
| Capillary | 0.031″ ID |
| Model Fridge | 10 – 12 Feet (Kiriazi, Olympic, etc.) |
| Temperature Function | -35°C to -10°C |
| With Fan or No | No (Static Cooling) |
| Commercial or No | No (Residential/Domestic) |
| Amperage in Function | 0.8A to 1.1A |
| LRA | 9.0A |
| Type of Relay | PTC (Positive Temperature Coefficient) |
| Capacitor | Generally not required (None) |
Compressor Replacement Options
5 Replacements (Same Gas – R134a):
- Embraco: EMY65HLC / EMI 70HER
- Danfoss/Secop: TLS6F
- Panasonic: QB66C13GAX5
- Tecumseh: THG1352YGS
- Huayi: HYE69MTU
5 Replacements (Other Gas – R600a):
Note: Requires full system flush and oil change consideration.
- ZMC: EGM66AA
- Embraco: EMX55CLC
- Secop: TLES6.5KK.3
- Donper: L72CZ1
- Jiaxipera: T1114Y
The Engineering Guide to ZMC EGM66AF Performance
In the demanding world of residential cooling, the compressor serves as the mechanical heart of the appliance. The ZMC EGM66AF stands out as a robust 1/6 HP unit, specifically engineered for Low Back Pressure (LBP) applications. This model is a favorite among field engineers due to its Egyptian-made reliability, combining European design standards with local durability.
Technical Efficiency & Motor Design
The EGM66AF utilizes an RSIR motor (Resistive Start, Induction Run). Unlike many modern low-power compressors that use aluminum windings to shave weight, ZMC continues to utilize high-purity copper. This ensures better heat dissipation and reduces the risk of winding burnout during high-ambient-temperature summers.
Comparative Value Analysis
When compared to its peers, the EGM66AF offers a balanced displacement-to-power ratio:
| Feature | ZMC EGM66AF | Danfoss TLS6F | Embraco EMY65HLC |
| Displacement | 6.66 cc | 5.70 cc | 5.96 cc |
| Cooling Power | 150 W | 145 W | 158 W |
| Winding Type | Copper | Mixed/Copper | Copper |
Professional Field Advice & Benefits
- Optimal Environment: This compressor is designed for static cooling. Do not install it in commercial cabinets that require forced-air fan cooling unless the airflow is specifically directed at the compressor body to prevent overheating.
- Vacuum Protocol: R134a systems use POE oil, which is highly sensitive to moisture. A minimum vacuum of 500 microns is essential to prevent “acid” formation inside the capillary tube.
- Filter Drier: Always replace the filter drier when installing a new EGM66AF. A 15g or 20g drier is sufficient for a 10-foot refrigerator setup.
