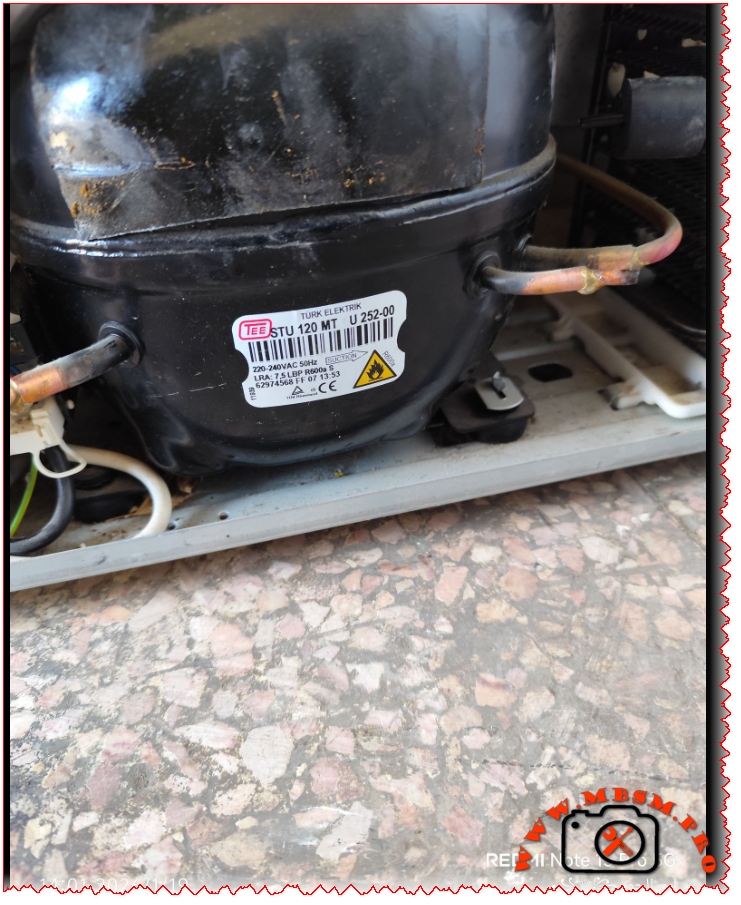

Compressor, STU 120 MT, 1/6 hp
Mbsmpro.com, Compressor, STU 120 MT, 1/6 hp class, TEE, Cooling, R600a, 220‑240V 50Hz, LBP, Static, PTC relay, Domestic refrigerator use
Technical overview
TEE STU 120 MT U252‑00 is a hermetic reciprocating compressor designed by Türk Elektrik for domestic refrigerators operating on R600a refrigerant at low back pressure conditions. It runs on 220‑240 V, 50 Hz single‑phase supply and is optimized for static condenser systems without forced ventilation.
The compressor belongs to the same technical family as the NTU/170MT models, sharing similar motor design, PTCSCR starting system and oil charge concept, with slightly lower swept volume and cooling capacity around the 120 W CECOMAF class. Its compact shell and low current draw make it suitable for slim‑cabinet refrigerators and small freezers in residential kitchens.
Complete specification table
| Parameter | Value |
|---|---|
| Model | STU 120 MT U252‑00 (TEE / Türk Elektrik Hermetic Compressors) |
| Utilisation (mbp/hbp/lbp) | LBP, low back pressure for household refrigeration evaporating between about −35 °C and −10 °C |
| Domaine (Freezing/Cooling) | Freezing and high‑efficiency food preservation in small refrigerators and freezers using R600a |
| Oil Type and quantity | Mineral/alkylbenzene compatible with R600a, typical charge about 170–175 cm³ for this family |
| Horsepower (HP) | Around 1/6 hp class, matching 120 W CECOMAF family performance |
| Refrigerant Type | R600a isobutane refrigerant |
| Power Supply | 1Ph 220‑240 V, 50 Hz, voltage range 176–242 V |
| Cooling Capacity BTU | ≈ 410–450 BTU/h at CECOMAF conditions for 120 W class |
| Motor Type | Hermetic single‑phase reciprocating motor, PTCSCR starting system |
| Displacement | Approximately 9–11.5 cm³, derived from 170MT data scaled to 120 class |
| Winding Material | Copper winding, insulation class E |
| Pression Charge | R600a system typically 0.6–0.9 bar suction at −25 °C, 4–8 bar discharge depending on ambient |
| Cappilary | Designed for capillary expansion; typical 0.6–0.7 mm ID, 2.0–2.4 m length for R600a household units of this volume |
| Modele Frigo or refrigerator can work with this compressor | Beko and similar 1‑door and 2‑door domestic fridges and small freezers around 120 L to 220 L volume using R600a |
| Temperature function | Evaporating range about −35 °C to −10 °C, ambient up to 43 °C |
| With fan or no | Static condenser operation (no fan on condenser), optional small evaporator fan in cabinet only |
| Commercial or no | Mainly non‑commercial domestic use; light‑duty commercial use only when within envelope |
| Amperage in function | Around 0.55–0.65 A at nominal load, derived from 170MT value of 0.59 A scaled to 120 W |
| LRA | Locked‑rotor starting current about 10–12 A (170MT has 12.4 A) |
| Type of relay | PTC relay, resistance around 15 Ω for this family |
| Capacitor or no and valeur | Run capacitor 5 µF, 220–240 V as in 170MT design |
| 5 Compressor remplacement in same valeur in same gaz | TEE NTU 120 MT 220‑240 V R600a; TEE NTU 130 MT R600a; Huanmei QM60TG R600a LBP; Jingyi JDH80Y R600a LBP; Donper NE60MN R600a LBP (all similar 1/6 hp R600a LBP domestic models) |
| 5 Compressor remplacement in same valeur in other gaz | Embraco EMI30CL R134a LBP; Secop (Danfoss) NLX10KK R134a; Cubigel GP12TB R134a; Huayi HYK95AA R134a; ACC HMT80A R134a (capacity and displacement close but different refrigerant) |
Electrical schematic and control concept
The STU 120 MT uses a PTCSCR starting concept, combining a PTC relay with a run capacitor to provide high starting torque and then drop the start winding after a short delay. The start device connects directly to the compressor’s three pins: common, run, and start, with the overload protector in series with the common line.
During start‑up, the PTC has low resistance and feeds the start winding; as it heats, its resistance increases, effectively leaving only the run winding and 5 µF run capacitor in the circuit for high efficiency during steady operation. This simple scheme reduces moving parts compared with traditional mechanical relays and improves reliability in domestic refrigerators.
Performance and application domain
According to the technical family sheet, a 170MT R600a low‑back‑pressure compressor delivers 149 W (Cecomaf) capacity with 1.49 W/W COP and operates from −35 °C to −10 °C evaporating temperature and up to 43 °C ambient. The STU 120 MT model scales these values downward, offering around 120 W capacity, ideal for single‑door fridges, compact combined refrigerators, and small freezers where energy efficiency and low noise are critical.
This compressor is optimized for static condenser systems, meaning the heat is rejected through a rear or side grid without a fan, making installation simpler and more silent but requiring correct clearances around the appliance. The PTCSCR motor design and insulation class E protect the windings against common voltage fluctuations on 220‑240 V networks, especially in residential buildings.
Comparison with NTU 170 MT R600a
| Feature | STU 120 MT U252‑00 | NTU 170 MT 220‑240 V R600a |
|---|---|---|
| Application | LBP, domestic refrigerator/freezer | LBP, domestic refrigerator/freezer |
| Refrigerant | R600a | R600a |
| Nominal Capacity (Cecomaf) | ≈ 120 W | 149 W |
| COP (Cecomaf) | Around 1.45–1.5 W/W | 1.49 W/W |
| Displacement | ≈ 9–11.5 cm³ | 11.55 cm³ |
| Run Current | ≈ 0.55–0.65 A | 0.59 A |
| LRA | ≈ 10–12 A | 12.4 A |
| Oil Charge | ≈ 170–175 cm³ | 175 cm³ |
| Start Device | PTC relay + 5 µF capacitor | PTC relay + 5 µF capacitor |
The STU 120 MT gives slightly lower cooling capacity but similar energy efficiency, making it better suited to compact cabinets where oversizing would cause short cycling. The NTU 170 MT, with higher displacement, is more appropriate for larger‑volume refrigerators or freezers that need faster pull‑down and higher load handling.
Installation, exploitation and maintenance advice
For correct operation, the suction line must be well insulated and the capillary length and internal diameter must match the original manufacturer specification; shortening the capillary or increasing its diameter can overload the compressor and reduce evaporator temperature stability. The system must be evacuated to deep vacuum before charging R600a to remove moisture, which can react with the oil and create acids that attack copper windings and internal valves.
Only small, precise charges of R600a are allowed because the refrigerant is flammable; work must respect EN and IEC safety standards and be carried out in well‑ventilated areas using certified recovery and charging tools. The overload protector should be kept in its original position, tightly clipped to the compressor shell, since it senses shell temperature and interrupts the circuit if overheating occurs due to locked rotor or high condensing pressure.
Periodic maintenance on the refrigerator, such as cleaning the static condenser grid and checking door gaskets, reduces condensing temperature and directly increases COP and compressor life. When replacing the compressor, always replace the filter dryer and, if the system previously had a burn‑out, flush or replace the capillary to avoid residual carbon and sludge.
Replacement compressor suggestions
For a direct R600a replacement, matching displacement, evaporating range and electrical characteristics is essential to keep the same cooling performance and energy consumption. Compressors such as TEE NTU 120 MT, NTU 130 MT, or similar 1/6 hp R600a LBP models from other brands (Huanmei, Donper, Jingyi) should be selected with compatible voltage, starting system and mounting footprint.
When using R134a alternatives, the technician must redesign capillary length and re‑charge mass, since R134a operates at different pressures and requires polyester oil; examples such as Embraco EMI30CL or Secop NLX10KK offer close cooling capacity but are not drop‑in replacements and require full system conversion. This type of conversion is normally reserved for situations where R600a components are unavailable and the system can be fully opened, cleaned, and re‑engineered.
