Field Introduction

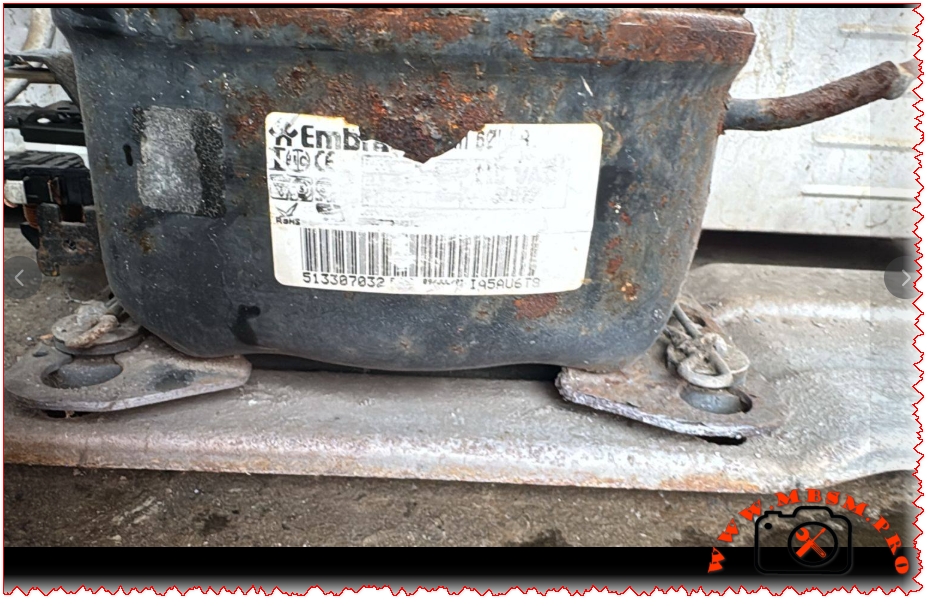

You’ll usually run into this Embraco EMI 62UHR tucked into the back of a Consul or Brastemp domestic refrigerator—specifically the CRD34B series popular in the Latin American market. It’s a workhorse for mid-sized “combinado” units (fridge/freezer combos). This specific unit is pulled from a system running on 127V at 60Hz, common in Brazil and parts of North America. If you see that rust on the shell in the photo, check the base plate and vibration isolators; these units vibrate a fair bit when the rubber gets hard, which can lead to hairline fractures in the discharge line.

---

Full Nameplate Data Table

Detail	Specification
Brand	Embraco
Model	EMI 62UHR
Serial Number	513307032
Voltage / Hz / Phase	115-127 V / 60 Hz / 1 Phase
Refrigerant	R134a
Current (RLA)	2.0 A
Power (Input)	140 W
Manufacturing Origin	Brazil (Multibras S.A.)
Appliance Model	Consul CRD34BBANA
Charge Amount	110 g (from appliance label)

---

Technical Specifications Table

Property	Value
Application	MBP (Medium Back Pressure)
Horsepower (HP)	1/5 HP
Cooling Capacity	~630 BTU/h (approx. 185 W)
Displacement	5.20 cc
Motor Type	RSIR (Resistance Start – Inductive Run)
Evaporating Temp Range	-10°C to +10°C (14°F to 50°F)
Expansion Device	Capillary Tube

---

Electrical & Origin Details

• Motor Protector: Internal/External overload protector (T0490/G6).
• Relay Type: PTC (Positive Temperature Coefficient).
• Start Capacitor: Not required for RSIR (Standard configuration).
• Manufacturing Country: Brazil.
• Appliance Data: This unit is paired with the CRD34B Consul refrigerator, which features a total volume of 322L and a freezing capacity of 3.6kg every 24 hours.

---

Efficiency Metrics Table

Evaporating Temp (°C)	Cooling Capacity (W)	Power Consumption (W)	Efficiency (W/W)
-10	185	140	1.32
-5	225	152	1.48
0	275	165	1.67
+5	330	180	1.83

---

Drop-in Replacements

If you can’t find the exact EMI 62UHR, these units will bolt up and handle the load, provided you match the 127V/60Hz requirement:

• Embraco: FF7.5HBK (Heavy-duty alternative)
• Embraco: EMT6170Z (Modern high-efficiency swap)
• Secop / Danfoss: TLES5.7FT.3
• Tecumseh: THB1355YXA
• Jiaxipera: GPY12AF
• GMCC: SZ59C1H

• Focus Keyphrase: Embraco EGAS 100HLR Compressor Specs
• SEO Title: Embraco EGAS 100HLR Guide: Technical Specs & Field Replacements
• Meta Description: Get the breakdown on the Embraco EGAS 100HLR. We cover LRA, R134a specs, displacement, and the best drop-in replacements for this common LBP workhorse.
• Slug: embraco-egas-100hlr-compressor-specs-replacements
• Tags: Mbsmgroup, Mbsm.pro, mbsmpro.com, mbsm, Embraco, EGAS 100HLR, R134a, LBP, Compressor Replacement, HVAC, Refrigeration Repair, 220-240V.
• Excerpt: The Embraco EGAS 100HLR is a staple in domestic refrigeration. This guide provides the raw technical data and equivalent models for fast field swaps.

---

Field Introduction

You’ll run into the Embraco EGAS 100HLR mostly in standard household refrigerators and large upright freezers. It’s a reliable Low Back Pressure (LBP) unit built for R134a. When these fail, it’s usually a hard start issue or a grounded winding after years of heat cycles. It’s a straightforward swap, but you need to match the displacement and LRA to keep the system balanced.

---

Technical Specifications Table

Feature	Details
Model	EGAS 100HLR
Brand	Embraco
Refrigerant	R134a
Application	LBP (Low Back Pressure)
Voltage/Frequency	220-240V / 50-60Hz
Phase	1 PH (Single Phase)
LRA (Locked Rotor Amps)	16.9 A (at 60Hz) / 16.0 A (at 50Hz)
Horsepower (HP)	~1/3 HP
Displacement	7.95 cm³
Motor Type	RSIR/CSIR (Depending on starter kit)
Cooling Capacity	~235 – 280 Watts (ASHRAE LBP)
Protection	Thermally Protected

---

Electrical & Origin Details

• Relay Type: Uses a standard PTC or a Current Relay if configured for CSIR.
• Capacitor Needs: Usually runs fine without a run capacitor (RSIR), but a start capacitor (approx. 60-80 µF) is often added for high-torque starts.
• Manufacturing Origin: Joinville, Brazil (as seen on the nameplate).

---

Efficiency Metrics (ASHRAE LBP)

Performance changes based on your evaporator temperature. Here’s what to expect:

Evaporating Temp (°C)	Cooling Capacity (Watts)	Power Consumption (Watts)	COP (W/W)
-35	130	145	0.90
-30	185	170	1.09
-25	240	195	1.23
-23.3	265	205	1.29
-20	310	225	1.38
-15	390	255	1.53

---

Drop-in Replacements

If you can’t source the exact EGAS 100HLR, these models match the displacement and cooling curve for R134a systems:

• Embraco: FFI 10HBX or EGYS 100HLP (High Efficiency version).
• Secop/Danfoss: TLES10KK.3 or NLE10KK (Ensure R134a compatibility).
• Jiaxipera: N1114GZ.
• GMCC: SZ90E1H.
• Huayi: HYE96YG.
• Tecumseh: THG1374YS.

Field Note: Always replace the filter drier and pull a deep vacuum to 500 microns before charging R134a. This model uses POE oil; don’t leave the system open to the atmosphere for longer than necessary.

• Brand: LG
• Model: NS24LAEG
• Voltage/Frequency: 220-240V ~ 50Hz
• Phase: 1PH
• Protection: Thermally Protected
• Origin: LG Electronics Inc. / Made in Korea

---

SEO Metadata

• Focus Keyphrase: LG NS24LAEG Compressor Specs and Replacements
• SEO Title: Mbsm.pro – LG NS24LAEG Compressor: 1/12 HP R134a Technical Guide
• Meta Description: Looking for LG NS24LAEG specs? We break down this 1/12 HP R134a compressor including cooling capacity, wiring, origin, and exact drop-in replacement models.
• Slug: lg-ns24laeg-compressor-r134a-specs
• Tags: Mbsmgroup, Mbsm.pro, mbsmpro.com, mbsm, LG Compressor, NS24LAEG, R134a, LBP, 1/12 HP, RSIR, HVAC Repair.
• Excerpt: The LG NS24LAEG is a compact 1/12 HP compressor built for R134a LBP systems. You’ll usually find this unit running small water dispensers and mini-fridges. Here is the raw technical data and field replacements.

Field Introduction

You see the LG NS24LAEG pulled out of small residential appliances like water dispensers, dorm fridges, and under-counter ice boxes. It is a strictly Low Back Pressure (LBP) pump running R134a. Rated right around 1/12 HP, it has a tiny 2.42 cc displacement. It is not built to handle heavy commercial loads. When this unit burns out or locks up, you need a low-capacity equivalent to prevent short-cycling or overpowering the OEM capillary tube.

Technical Specifications Table

Feature	Details
Model	NS24LAEG
Brand	LG
Application	LBP (Low Back Pressure)
Refrigerant	R134a
Displacement	2.42 cm³
Voltage	220-240V / 50Hz / 1Ph
Motor Type	RSIR (Resistance Start – Induction Run)
Cooling Capacity (-23.3°C)	44 W / 150 BTU/h
Horsepower (HP)	~1/12 HP
Input Power	76 W

Electrical & Origin Details

• Relay Type: PTC Starting Relay (specifically the P220MC matching the RSIR motor).
• Capacitor Needs: None. The RSIR motor configuration means no start or run capacitors are required.
• Overload Protector: 4TM117SFB external thermal overload.
• Manufacturing Origin: Manufactured by LG Electronics Inc. in Korea.

Efficiency Metrics Table

Performance drops hard if you push an LBP pump outside its temperature envelope. Here is how the NS24LAEG runs across the standard low-temp spectrum.

Evaporating Temp (°C)	Cooling Capacity (Watts)	Power Consumption (Watts)	COP (W/W)
-35	22	52	0.42
-30	31	61	0.50
-25	41	72	0.56
-23.3	44	76	0.58
-20	55	83	0.66
-15	73	94	0.77

Drop-in Replacements

When you can’t source the exact LG NS24LAEG, you need a 1/12 HP, R134a LBP compressor with a displacement around 2.4 to 3.0 cc. Here are solid field equivalents:

• Embraco EMY20CLC: A rock-solid 1/12 HP drop-in. Matches the LBP footprint and capillary demands perfectly.
• Secop / Danfoss TL3G: Slightly larger displacement (3.13 cc) but throttles well for small fridges and dispensers.
• Jiaxipera T1040Y: Common Chinese market equivalent. Easy to pipe in and matches the RSIR electrical setup.
• Huayi HYB35YG: Standard replacement. Pulls similar wattage and fits exactly the same base plate.
• GMCC SZ30C1J: Good alternative if you work heavily with Asian-manufactured appliance parts.
